PAIR MOD
This is the quick & dirty
version as I am not going into full detail on this mod
like we did for the RC51 however you can read that page
if you just want more detailed info on what it is &
why here:
RC51 PAIR MOD For the 1000RR the PAIR Solenoid that allows
the fresh air to enter the exhaust ports is located in
the headstock right on front of the airbox. To get to it
you will have to either remove the entire airbox or at
the very least seperate the top & bottom half of the
airbox so you can remove just the lower half of the
airbox from the throttle bodies. To do this you have to
disconnect the wire clamp on the right side of the
injector fuel rail to give enough slack in the wires to
move the top half of the airbox away from the lower half.

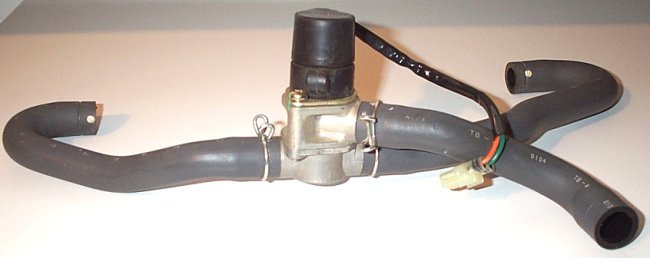

. This is the piece you are removing This is what the area will look like &
the ports you need to cap off |
